Applications :
- Single Core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
 |
 |
Construction :

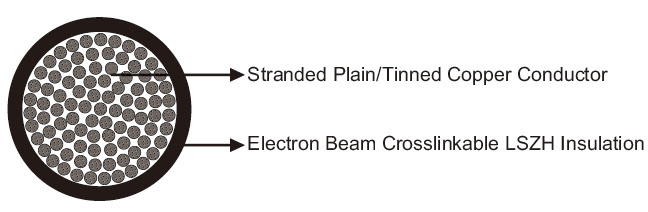

- Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulation : Electron beam crosslinkable medium wall LSZH compound.
Optional :
- FRA-MW-1S (Sheathed); FRA-MW-1S-OS (Screened & Sheathed).
- FRA-MW-1SU-FR (Fire resistant & Unsheathed).
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.5 0.75 1.0 1.5 2.5 4.0 6.0 Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 5.09 3.39 Voltage Rating KV 0.6/1.0 -
Nominal Conductor Cross Section mm² 10 16 25 35 50 70 95 Maximum Conductor Resistance Ω/km 1.95 1.24 0.795 0.565 0.393 0.277 0.21 Voltage Rating KV 0.6/1.0 -
Nominal Conductor Cross Section mm² 120 150 185 240 300 400 Maximum Conductor Resistance Ω/km 0.164 0.132 0.108 0.0817 0.654 0.0495 Voltage Rating KV 0.6/1.0
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No. x AWG |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| FRA-MW-1SU-1G0.5 | 1×0.5 | 16/0.2 | 0.6 | 2.0 | 6 |
| FRA-MW-1SU-1G0.75 | 1×0.75 | 24/0.2 | 0.6 | 2.2 | 8 |
| FRA-MW-1SU-1G1 | 1×1.0 | 32/0.2 | 0.6 | 2.6 | 10 |
| FRA-MW-1SU-1G1.5 | 1×1.5 | 30/0.25 | 0.7 | 3.1 | 20 |
| FRA-MW-1SU-1G2.5 | 1×2.5 | 50/0.25 | 0.7 | 3.5 | 30 |
| FRA-MW-1SU-1G4 | 1×4.0 | 56/0.3 | 0.7 | 4.1 | 50 |
| FRA-MW-1SU-1G6 | 1×6.0 | 84/0.3 | 0.7 | 4.6 | 60 |
| FRA-MW-1SU-1G10 | 1×10 | 80/0.4 | 0.7 | 5.5 | 110 |
| FRA-MW-1SU-1G16 | 1×16 | 126/0.4 | 0.7 | 6.7 | 160 |
| FRA-MW-1SU-1G25 | 1×25 | 196/0.40 | 0.9 | 8.5 | 240 |
| FRA-MW-1SU-1G35 | 1×35 | 276/0.40 | 0.9 | 9.8 | 330 |
| FRA-MW-1SU-1G50 | 1×50 | 396/0.40 | 1.0 | 11.5 | 460 |
| FRA-MW-1SU-1G70 | 1×70 | 360/0.50 | 1.0 | 13.6 | 660 |
| FRA-MW-1SU-1G95 | 1×95 | 475/0.50 | 1.1 | 15.1 | 860 |
| FRA-MW-1SU-1G120 | 1×120 | 608/0.50 | 1.1 | 17.1 | 1080 |
| FRA-MW-1SU-1G150 | 1×150 | 756/0.50 | 1.4 | 19.1 | 1370 |
| FRA-MW-1SU-1G185 | 1×185 | 925/0.50 | 1.6 | 21.3 | 1690 |
| FRA-MW-1SU-1G240 | 1×240 | 1221/0.50 | 1.7 | 24.1 | 2230 |
| FRA-MW-1SU-1G300 | 1×300 | 1525/0.50 | 1.8 | 26.7 | 2780 |
| FRA-MW-1SU-1G400 | 1×400 | 2013/0.50 | 2.0 | 30.5 | 3740 |
 |
 |
 |
 |
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
